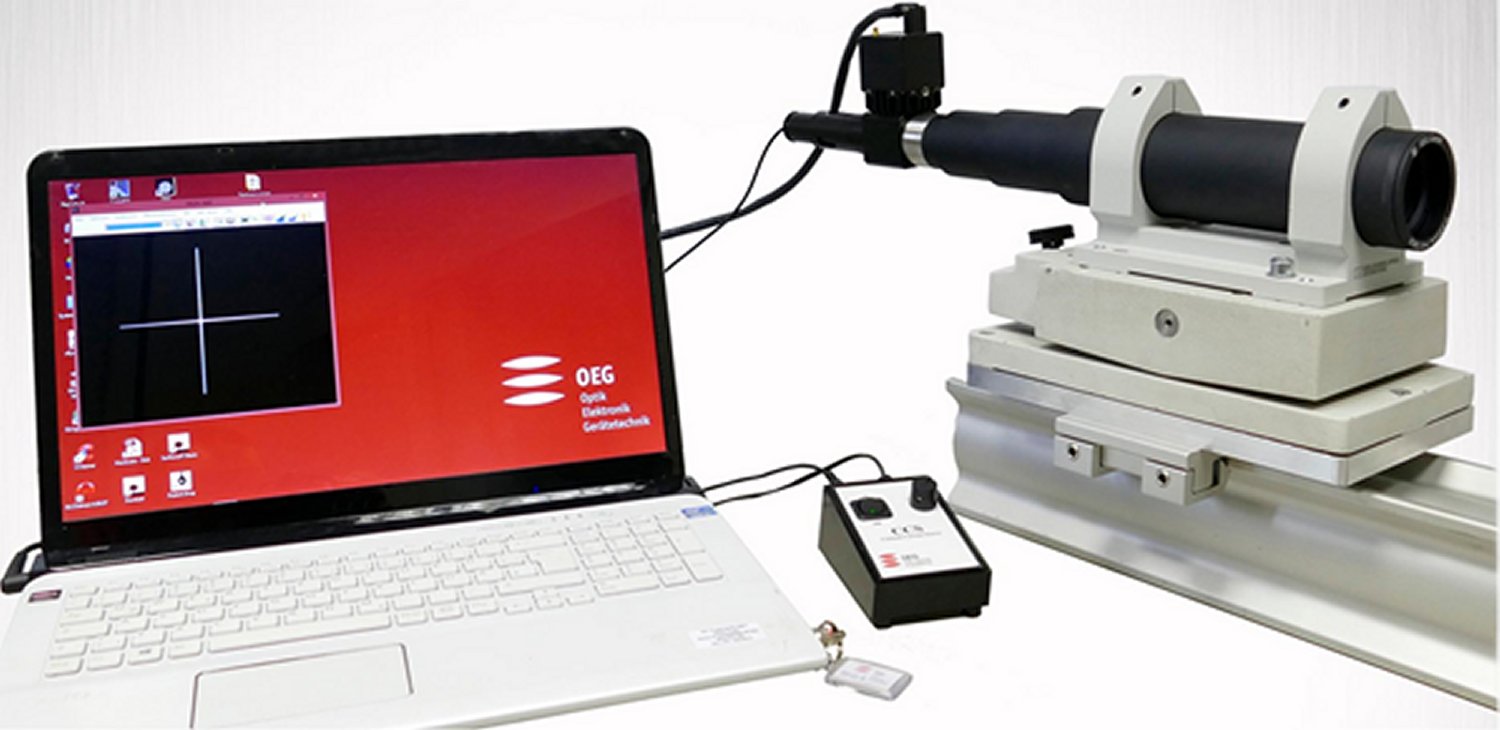

OEG GmbH has been developing and manufacturing SWIR autocollimators for some time. Currently, three variants with different focal lengths are available. When used in conjunction with the CROSSDETECT analysis software, these measurement systems achieve measurement accuracies ranging from 1 to 5 arcseconds. The camera employed is suitable for the 900 nm to 1700 nm wavelength range.



Product line SWIR-Autocollimators

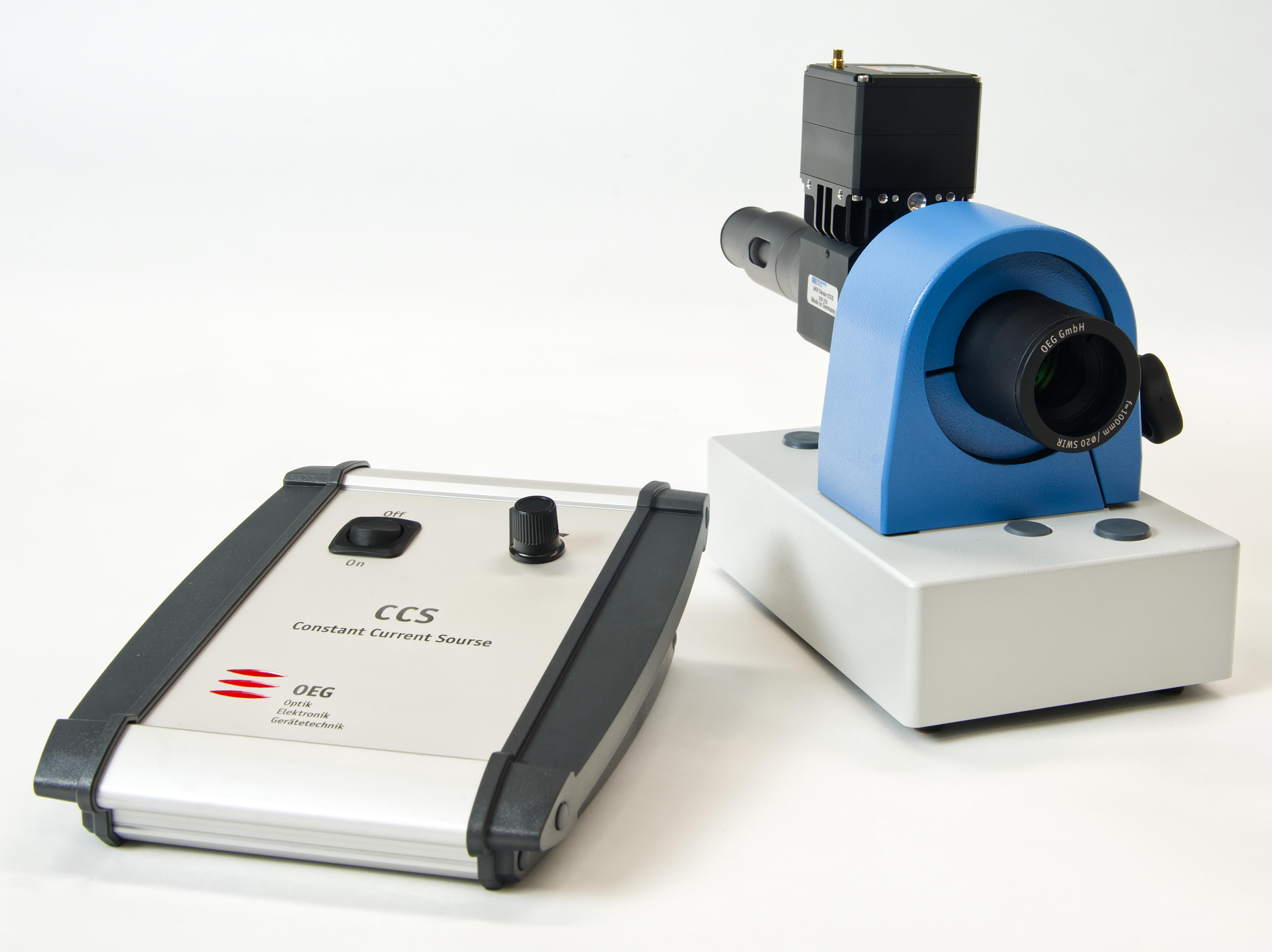

Electronic autocollimators for SWIR wavelength range



Currently, there are 3 types available:

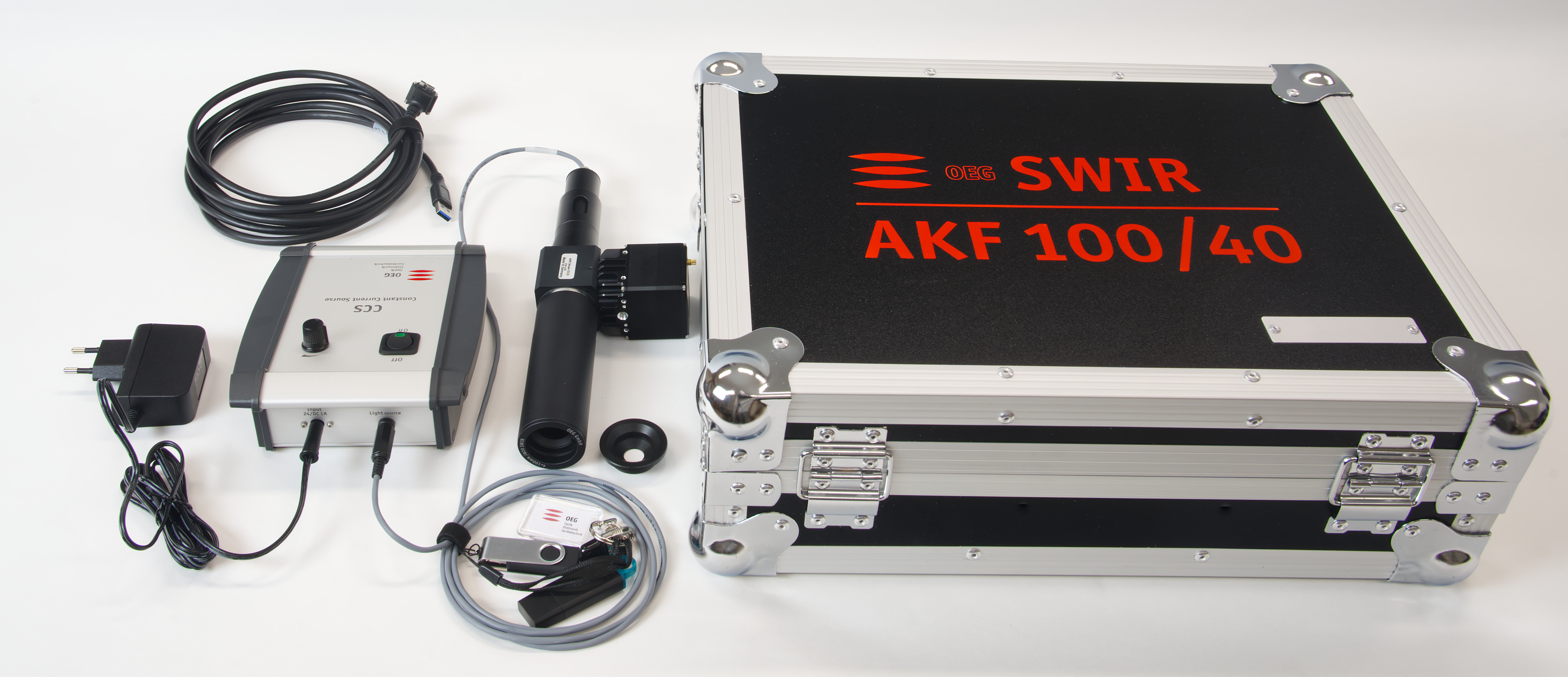

1) f’=100mm, 40mm tube diameter, accuracy 5 arcsec

2) f’=270mm, 65mm tube diameter, accuracy 2,7 arcsec

2) f’=500mm, 65mm tube diameter, accuracy 1 arcsec



For more technical information, please download the PDF.





Download PDF
