Industry & Application > Wire industry > LDGMS-Drawing Die Geometry Measuring System for large diameters
The LDGMS is a measuring device for the internal geometry of drawing dies with a very large internal diameter (›16mm). Thanks to high-precision image processing, the measurement accuracy is in the micrometer range.
Get in touch >
LDGMS
Large Die Geometry Measuring System
Large Die Geometry Measuring System

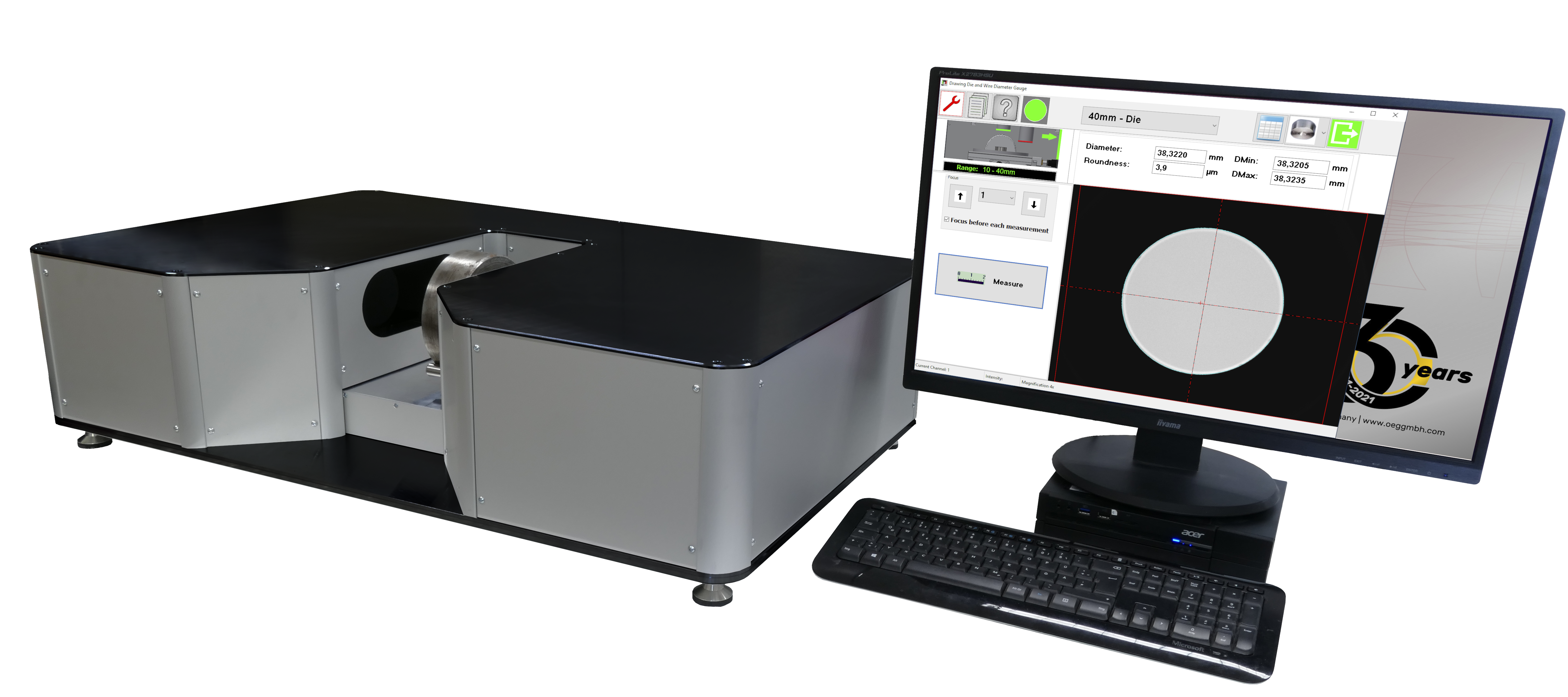

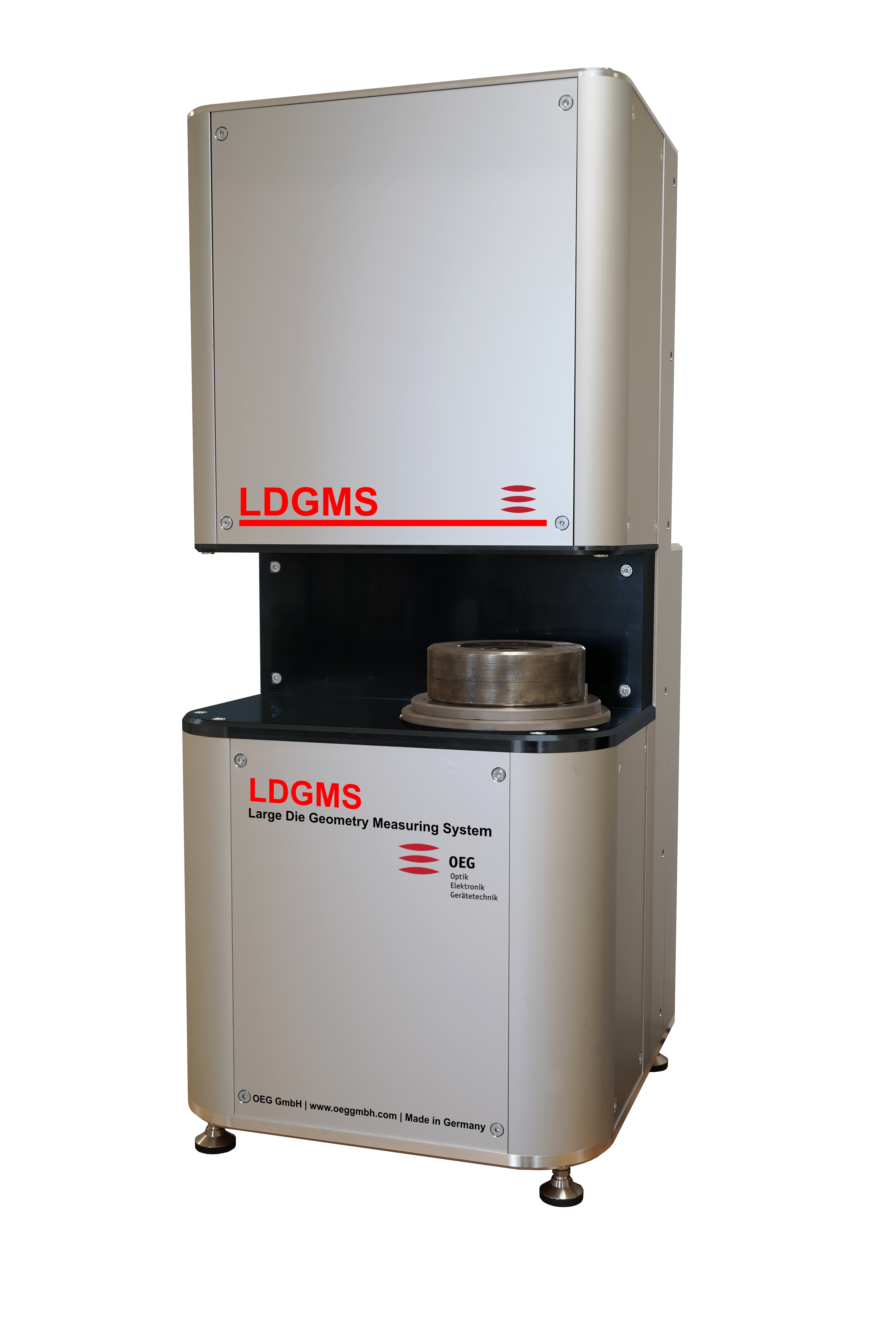

The LDGMS is a measuring system for drawing dies with an inner diameter larger than 16mm. What is measured:
-Diameter
-Roundness
-Reduction angle
-Bearing length
The software can be expanded with a module for measuring shaped dies.
The measurement is carried out optically without contact using image processing. Furthermore, the measurement is fully automatic and software-controlled.
The mechanical design was specially adapted to the large dimensions and weight of the drawing dies.
The mechanical design allows the use of different measuring optics. Drawing dies with an inner diameter of up to 50mm can be measured as standard. Larger diameters can be measured upon request.
If you have any questions about measuring accuracies and measuring ranges, please contact us. The specifics of the samples play a not insignificant role here.
We would also be happy to explain to you our calibration technology, which, in addition to high measurement accuracy as such, also enables the traceability of the results to international standards!
